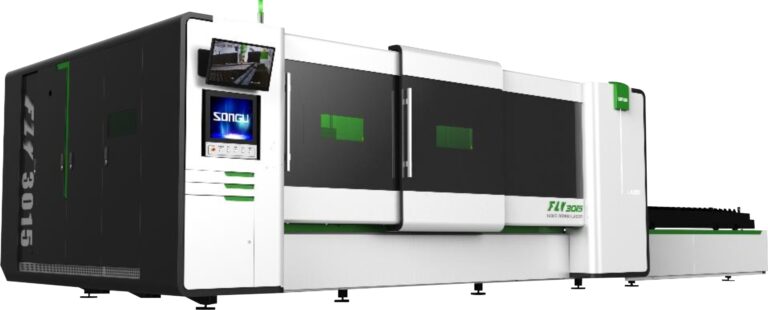

Fiber Laser Cutting Machine FLY3015

The FLY3015 Fiber Laser Cutting Machine is a cutting-edge piece of equipment designed to deliver high precision and speed in metal-cutting applications. With a powerful fiber laser source and advanced cutting technology, this machine is capable of cutting a wide range of materials with remarkable accuracy and efficiency. It is compact design and user-friendly interface makes it easy to operate, while its intelligent software allows for easy customization and automation of cutting processes. Whether you need to cut complex shapes, thick plates, or delicate materials, the FLY3015 is an excellent choice for a variety of metal-cutting applications. Its robust construction and reliable performance make it an indispensable asset to any production facility looking to maximize efficiency and quality.

Features

Gantry structure, high strength welding frame, stress reduction treatment, good rigidity, small deformation;

Enclosed exterior protective design, CE standard protective safety window.

Ergonomic design, intelligent operating terminal, friendly interface, easy to learn.

Precision servo motor with high accuracy transmission mechanism, large transmission torque, a small error, and good dynamic performance.

Y-axis sliding plate is made of cast aluminum, with an integrated z-axis system: high precision, fast response, and stable operation.

Double-layer translation shuƩle tables, the structure is safe and reliable, with few failures and high efficiency.

Technical Parameters

Model	FLY3015
Laser Power	1000~30000
Working area(mm)	3000×1500
Positioning accuracy(mm/m)	±0.05
Maximum Positioning speed	140
Repeated positioning accuracy(mm/m)	±0.03
Overall dimension(mm)	9100x3200x2250
Weight(kg)	7.5

Model	FLY6020
Laser Power	1000~30000
Working area(mm)	6000×2000
Positioning accuracy(mm/m)	±0.05
Maximum positioning speed	140
Repeated positioning accuracy(mm/m)	±0.02
Overall dimension(mm)	15500x3700x2250
Weight(kg)	11
