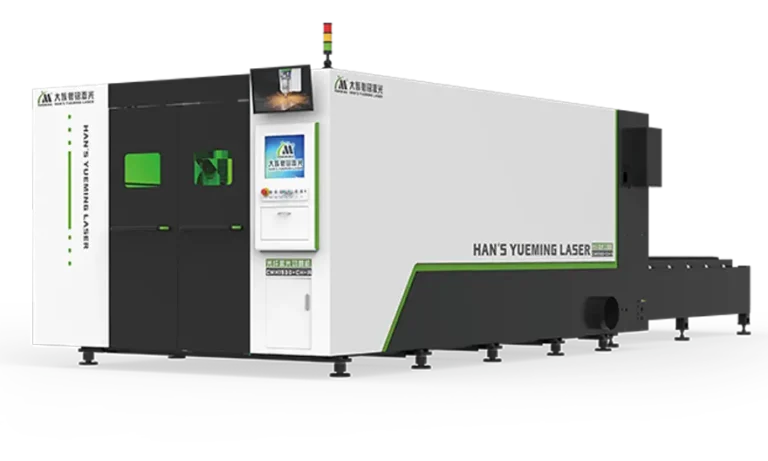

Full Enclosed Fiber Laser Cutter CMH1530-CH-A

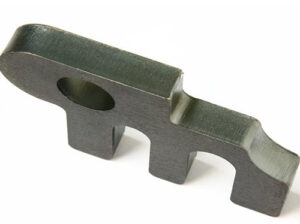

CMH1530-CH-A fiber laser cutting machine is a laser processing tool that is frequently used in the production sectors of metal processing, aerospace, electronic appliances, household appliances, lifts, cars, advertising, precision accessories, and craft presents. The machinery is built with a gantry double drive structure that combines a dual gear rack and dual servo motor drive system with a high-speed arc cutting function. This structure is able to successfully meet the application requirements for metal materials like carbon steel, stainless steel, aluminum plate, galvanized sheet, etc.

Features

High Rigidity Enhanced Aviation Aluminum Gantry, improve the gantry strength and rigidity and is much lighter.

Finite element analysis of the gantry helps to achieve the best critical state of dynamic performance.

Fiber laser has better Industry -leading wall-plug efficiency (around 40%), and less power consumption.

Integrated structure design, reasonable overall layout. The hand controller is available and easy to operate.

Professional laser cutting software with graphic layout and sharp corner smoothing functions, fast-piercing & cutting.

Rack and pinion structure, servo drive, secondary annealing treatment of high rigid welding frame with high accuracy and stability.

Technical Parameters

Model	CMH1530-CH-A
Laser Power	Standard version :2000~4000W High version :6000~12000W
Working area(mm)	1500×3000
Positioning accuracy(mm/m)	±0.03
Maximum speed	Standard version:100m/min High version:120m/min
Repeated positioning accuracy(mm/m)	±0.02
Overall dimension(mm)	8700×2900×2500
Weight(S)/(H)	6500/7500kg
Working environment	Temp:0~45°C Humidity:≤80% Clean

Model	CMH1530-CH-A
Laser Power	Standard version :2000~4000W High version :6000~12000W
Working area(mm)	1500×3000
Positioning accuracy(mm/m)	±0.03
Maximum speed	Standard version:100m/min High version:120m/min
Repeated positioning accuracy(mm/m)	±0.02
Overall dimension(mm)	8400 X 2280 X 2260
Weight(S)/(H)	6700 kg (Body only)
Working environment	Temp:0~45°C Humidity:≤80% Clean
