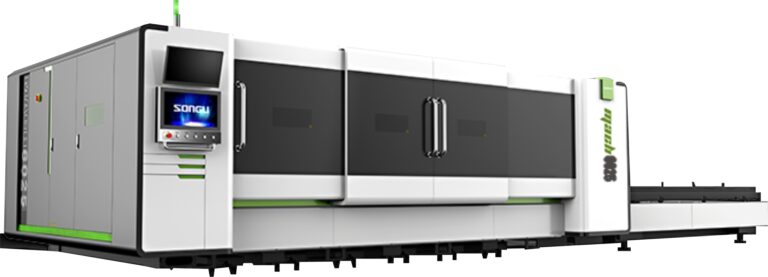

Mach4020-A Fiber Laser Cutting Machine

The Mach4020-A is a state-of-the-art fiber laser cutting machine designed for high precision and efficiency in metal cutting applications. With its advanced technology and cutting-edge features, this machine is capable of producing clean and accurate cuts on a wide range of materials, including stainless steel, aluminum, copper, brass, and more. Its compact and ergonomic design allows for easy installation and operation, making it an ideal choice for small to medium-sized manufacturing facilities. Whether you need to cut intricate shapes, thick plates, or delicate materials, the Mach4020-A delivers exceptional performance and reliability, making it a valuable asset to any production line.

Features

Better laser beam quality, lower operating costs, less power consumption and longer working life due to using the new generation IPG fiber laser source

Equipped with PRECITEC new generation pro-cutter laser cutting head, optimized cutting process, monitoring cutting conditions through“APP” use easily and friendly

Eagle eye (CCD) technology, ultra-fast positioning of the sheet metal edge, minimum cutting down time, In addition, it also can process punching parts and precut parts, due to the secondary positioning function

Optimized cutting technology with Programmable laser frequency and focus position, to achieve high-efficiency processing on different thicknesses & type sheet metal. All cutting parameters can be programmed, with no need for human intervention, and use easily and friendly.

Automatic energy saving mode: while stopping over 5 minutes, the machine automatically switches into “standby” mode, to reduce power consumption.Auto exchanging table with Hydraulic lifting system; ensure synchronous running, reliability, and stability.

With remote function, can remotely monitor the running conditions of the machine, which is much easier for service and faster response. With an ergonomic design, equipped with an intelligent operation terminal, user-friendly and easy to learn.

Technical Parameter

ModelMach 3015/Mach 4020/Mach 6025/Mach 8025
Working area3050×1550/4050×2050/6050×2550/8050×2550mm
Material size3000×1500/3000×1500/6000×2550/8000×2500mm
Position accuracy±0.05mm/m
Reposition accuracy±0.03mm/m
X-axis stroke170m/min
X/Y axis maximum linkage speed240m/min
Maximum positioning acceleration2.4g
X axis stroke3050/4050/6070/8070mm
Y axis stroke1550/2050/2550/2550mm
Z axis stroke100/100/100/300mm
Maximum machining weight of a single table1500/2600/4800/6300kg
Gross weightabout 7500/10000/13500/19000kg
Exchange table weightabout 2500/3600/5500/6500/6500kg
Overall dimensionabout 9000×3100×2200/11000×3800×2200/15500×4200×2200/19500×4200×2200mm
