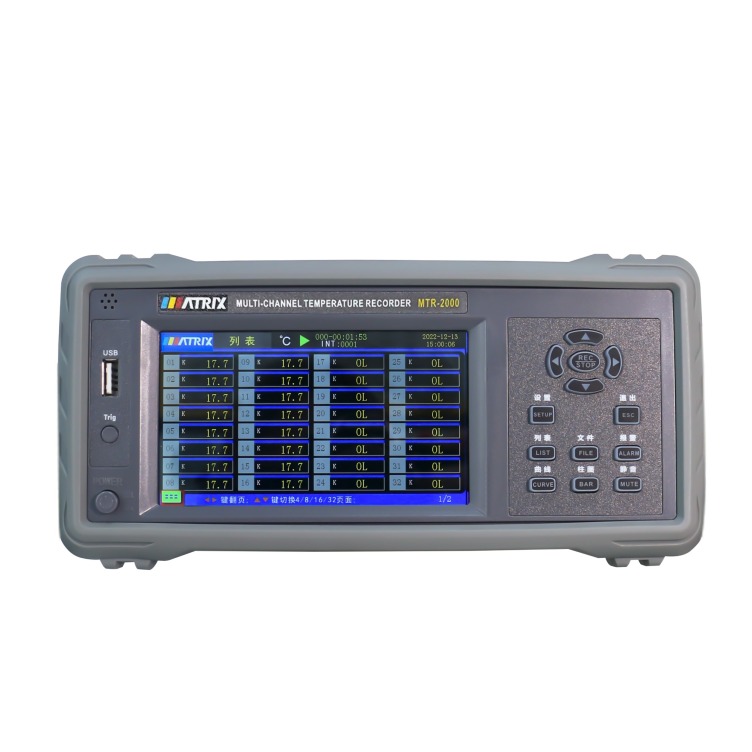

Matrix - MTR 2000 Temperature Recorder

MTR-2000
Get Latest Price

MTR 2000

● Multi-interface display,file list,real-time list display, histogram display,real-timelrecord/analysis curve display,alarm list,system Settings,etc..
●Supports multiple sensor inputs:K J E TN S R B.
●Basic measurement accuracy:0.2° ℃+2 words(without sensor),cold end compensation accuracy: 0.5 ℃ .
●Each channel can be set to use different thermocouple types.
●32 channels can be displayed simultaneously

●USB and RS485 communication ports are standard.
● Using 8 different thermocouples at the same time.
●Modular design, each module 8 channels,support a maximum of 64 channels,Automatic identification of capacity expansion.

Product Brochure

  • List,curve,histogram display
  • Record files are exported or deleted at any time
  • Using 8 different thermocouples at the same time
  • Support a maximum of 64 recording files,each file 130,000 groups of data,1 to 9999seconds interval arbitrary setting, the maximum recording time =97 days x interval.

Digital Storage Oscilloscope MDS-2000 Series

MDS-2000 Series
Get Latest Price

MDS-2000 Series

●Bandwidth: 150MHz/250MHz
●2-Channel + Sample rate: 1GS/s
●Ultra-thin body + 7 inch high resolution LCD
●SCPI, and LabVIEW supported

Product Brochure

  • Digital Storage Oscilloscope MDS-2000 Series

    MDS 2000 series oscilloscopes are cost-effective, easy to operate, stable and reliable

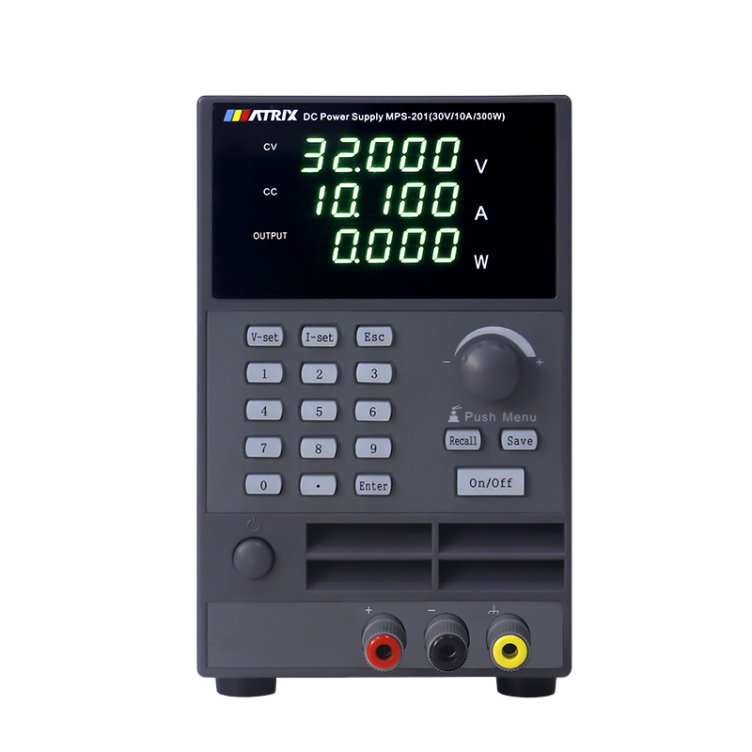

Matrix - MPS-202 High Precision Programmable DC Power Supply

MPS-200 Dc power
Get Latest Price

MPS-202

● Resolution of voltage 1mV and current 0.1mA, high-precision display
● Set voltage and current through two methods: digital keyboard and knob
● Nine sets of voltage and current storage and retrieval functions, convenient and fast
● Output switch control, easy to control
● Intelligent temperature controlled fan, extremely practical
● The knob adopts a coding switch, which is convenient and fast to use, and has anti misadjustment function
● LIST output function
● Voltage and current range setting function
● OVP/OCP setting function
● One click initialization function

Product Brochure

ModelMPS-200MPS-201MPS-202
Rated input voltageAC220V/110V±10%
Rated output voltage–0-60V
Rated output current––

0-5A

Rated output power–300W

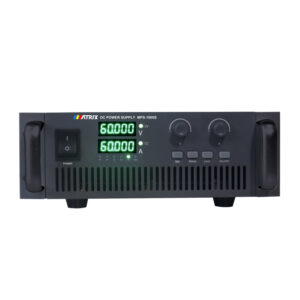

MPS-1800S Series Programmable DC Power Supply

MPS-1800s Dc power
Get Latest Price

MPS-1800S DC Power Supply

  • Simultaneous five digit display of voltage and current,precise and easy to use.
  • Adopting PWM modulation and high gain amplification circuit design,stable and reliable.
  • The panel has preset buttons that can preset voltage and current values.
  • Complete protection functions: OVP、OCP、OTP、Short circuit protection. Key lock function
  •  Key components are imported to ensure long-term full load operation.
  •  Remote voltage compensation function ensures usage accuracy.

Product Brochure



Model

Voltage

Current

Power

MPS-1800S-30-60

0-30.000V

0-60.000A

1800W

MPS-1800S-60-30

0-60.000V

0-30.000A

1800W

MPS-1800S-100-18

0-100.00V

0-18.000A

1800W

MPS-1800S-150-12

0-150.00V

0-12.000A

1800W

MPS-1800S-200-9

0-200.00V

0-9.0000A

1800W

MPS-1800S-300-6

0-300.00V

0-6.0000A

1800W

AC input

Single phase

AC220V±10%，50Hz

DC output

Output voltage

0V  –  rating

Output current

0A  –  rating

Output power

0W  –  rating

Load regulation

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Setting value

accuracy

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Readback value

accuracy

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Ripple(20Hz-20MHz）

Voltage

Vrms≤0.2%F.S+50mV

Dynamic response time(10% -90% load)

≤5mS

Display method

4 and a half digit meter (LED digital tube display)

Display resolution

Voltage0.001V/0.01V/0.1V,Current0.001A/0.01A/0.1A

  Interface

RS232/RS485

Functional protection

OVP, OCP, OTP, Short circuit protection

Heat dissipation method

Adopting PWM speed regulating fan, air-cooled

Operating environment

Temperature 0 ℃ -40 ℃; Humidity 10% -85% RH

Environment

Temperature -20 ℃ -70 ℃; Humidity 10% -90% RH

Special requirements

Other specifications and models can be customized

Size（mm)

215×360×88（W*D*H mm）

Weight（kg)

5.5KG

MPS-3600S Series Programmable DC Power Supply

MPS-1800s Dc power
Get Latest Price

MPS-3600S DC Power Supply

  • Simultaneous five digit display of voltage and current,precise and easy to use.
  • Adopting PWM modulation and high gain amplification circuit design,stable and reliable.
  • The panel has preset buttons that can preset voltage and current values.
  • Complete protection functions: OVP、OCP、OTP、Short circuit protection.
  • Key lock function.
  • Key components are imported to ensure long-term full load operation.
  • Remote voltage compensation function ensures usage accuracy.

Product Brochure

Model

Voltage

Current

Power

MPS-3600S-30-120

0-30.000V

0-120.00A

3600W

MPS-3600S-60-60

0-60.000V

0-60.000A

3600W

MPS-3600S-100-36

0-100.00V

0-36.000A

3600W

MPS-3600S-150-24

0-150.00V

0-24.000A

3600W

MPS-3600S-200-18

0-200.00V

0-18.000A

3600W

MPS-3600S-300-12

0-300.00V

0-12.000A

3600W

MPS-3600S-600-6

0-600.00V

0-6.0000A

3600W

AC input

Single phase

AC220V±10%，50Hz

DC output

Output voltage

0V  –  rating

Output current

0A  –  rating

Output power

0W  –  rating

Load regulation

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Setting value

accuracy

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Readback value

accuracy

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Ripple(20Hz-20MHz）

Voltage

Vrms≤0.2%F.S+50mV

Dynamic response time(10% -90% load)

≤5mS

Display method

4 and a half digit meter (LED digital tube display)

Display resolution

Voltage0.001V/0.01V/0.1V,Current0.001A/0.01A/0.1A

Interface

RS232/RS485

Functional protection

OVP, OCP, OTP, Short circuit protection

Heat dissipation method

Adopting PWM speed regulating fan, air-cooled

Operating environment

Temperature 0 ℃ -40 ℃; Humidity 10% -85% RH

Environment

Temperature -20 ℃ -70 ℃; Humidity 10% -90% RH

Special requirements

Other specifications and models can be customized

Size（mm)

430×400×88（W*D*H mm）

Weight（kg)

7.5KG

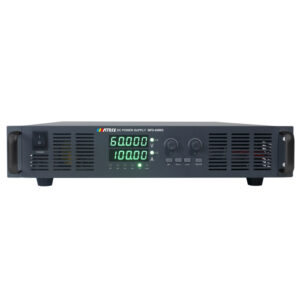

MPS-6000S Series Programmable DC Power Supply

MPS-6000s
Get Latest Price

MPS-6000S DC Power Supply

  •  Simultaneous five digit display of voltage and current,precise and easy to use.
  •  Adopting PWM modulation and high gain amplification circuit design, stable and reliable.
  •  The panel has preset buttons that can preset voltage and current values.
  •  Complete protection functions: OVP、OCP、OTP、Short circuit protection.
  •  Key lock function.
  •  Key components are imported to ensure long-term full load operation.
  •  Remote voltage compensation function ensures usage accuracy.

Product Brochure

Model

Voltage

Current

Power

MPS-6000S-30-200

0-30.000V

0-200.00A

6000W

MPS-6000S-60-100

0-60.000V

0-100.00A

6000W

MPS-6000S-100-60

0-100.00V

0-60.000A

6000W

MPS-6000S-150-40

0-150.00V

0-40.000A

6000W

MPS-6000S-200-30

0-200.00V

0-30.000A

6000W

MPS-6000S-300-20

0-300.00V

0-20.000A

6000W

MPS-6000S-600-10

0-600.00V

0-10.000A

6000W

MPS-6000S-1000-3

0-1000.0V

0-3.0000A

3000W

MPS-6000S-1000-6

0-1000.0V

0-6.0000A

6000W

MPS-6000S-1200-3

0-1200.0V

0-3.0000A

3600W

MPS-6000S-1200-5

0-1200.0V

0-5.0000A

6000W

MPS-6000S-2000-2

0-2000.0V

0-2.0000A

4000W

AC input

Uniphase: AC220V±10%，50Hz or Three-phase: AC380V±10%，50Hz



DC output

Output voltage

0V  –  rating

Output current

0A  –  rating

Output power

0W  –  rating

Load regulation

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Setting value

accuracy

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Readback value

accuracy

Voltage

≤0.1%F.S+0.1%F.S

Current

≤0.1%F.S+0.1%F.S

Ripple(20Hz-20MHz）

Voltage

Vrms≤0.2%F.S+50mV

Dynamic response time(10% -90% load)

≤5mS

Display method

4 and a half digit meter (LED digital tube display)

Display resolution

Voltage0.001V/0.01V/0.1V,Current0.001A/0.01A/0.1A

Interface

RS232/RS485

Functional protection

OVP, OCP, OTP, Short circuit protection

Heat dissipation method

Adopting PWM speed regulating fan, air-cooled

Operating environment

Temperature 0 ℃ -40 ℃; Humidity 10% -85% RH

Environment

Temperature -20 ℃ -70 ℃; Humidity 10% -90% RH

Special requirements

Other specifications and models can be customized

Size（mm)

430×500×88（W*D*H mm)

Weight（kg)

16KG

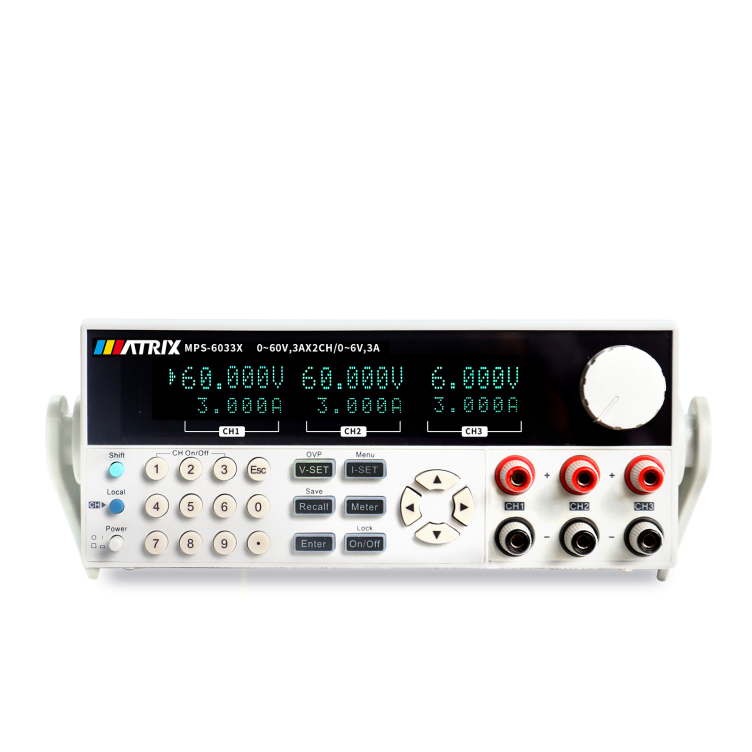

MPS-X SERIES TRIPLE CHANNEL DC LINEAR POWER SUPPLY

Get Latest Price

MPS-X SERIES DC LINEAR POWER SUPPLY

  • •Three channels show and adjust current and voltage at the same time
  • •Intelligent temperature controlled fun to reduce the noise
  • •Serial/Parallel/Trackmode
  • •Low ripple and noise
  • •Can be calibrated and monitored through computers
  • •With SENSE function,can compensate voltage drop on the line
  • •Output time can be set(0~99999.9s)
  • •Output controlled by a switch
  • •40 groups of storage can be quickly recalled

Product Brochure

Model

MPS-3033X

MPS-3063X

MPS-6033X

Rated output

( 0 °C – 40 °C)

Voltage

0~30V*2CH/0~6V*1CH

0~30V*2CH/0~6V*1CH

0~60V*2CH/0~6V*1CH

Voltage limit protection

33V*2CH/7V*1CH

33V*2CH/7V*1CH

63V*2CH/7V*1CH

Current

0~3A*2CH/0~3A*1CH

0~6A*2CH/0~3A*1CH

0~3A*2CH/0~3A*1CH

Power

90W/90W/18W

180W/180W/18W

180W/180W/18W

Load regulation

(％of output+offset)

Voltage

≤0.01%+3mV

Current

≤0.01%+3mA

Power regulation

(％of output+offset)

Voltage

≤0.01%+3mV

Current

≤0.01%+3mA

Setting resolution

Voltage

1mV

Current

1mA

Readbackresolution

Voltage

1mV

Current

1mA

Setting accuracy

（in 12 months）

(25 °C ± 5 °C)

(％of output+offset)

Voltage

≤0.03%+10mV

≤0.03%+10mV

≤0.03%+10mV

Current

≤0.1%+5mA

≤0.1%+8mA

≤0.1%+5mA

Readback accuracy

(25 °C ± 5 °C)

(％of output+offset)

Voltage

≤0.03%+10mV

≤0.03%+10mV

≤0.03%+10mV

Current

≤0.1%+5mA

≤0.1%+8mA

≤0.1%+5mA

Ripple and noise

(20Hz-20MHz)

Voltage(Vp-p)

≤5mVp-p

≤6mVp-p

≤5mVp-p

Voltage(rms)

≤2mVrms

≤2mVrms

≤2mVrms

Current(rms)

≤4mArms

≤5mArms

≤4mArms

Output temperature coefficient

(0 °C ~ 40 °C)

(％of output+offset)

Voltage

≤0.03%+10mV

Current

≤0.1%+5mA

≤0.1%+8mA

≤0.1%+5mA

Readback temperature coefficient

(％of output+offset)

Voltage

≤0.03%+10mV

Current

≤0.1%+5mA

≤0.1%+8mA



Setting accuracy in parallel and series

Voltage

≤0.2%+5mV

≤0.2%+5mV

≤0.2%+5mV

Current

≤0.1%+30mA

Memory

Storage

/recall

40 groups

Timer

Function

Output timer

Time setting

0.1s~3600s

Resolution

0.1s

Interface

RS232、USB

Working temperature

0~40℃

Equipment size（W*H*D)

mm

255*110*380

255*110*380

255*110*380

Packing size（W*H*D)

mm

325*210*475

325*210*475

325*210*475

N.W

kg

9.1

9.1

9.1

G.W

kg

10

10

10

Electronic Load PEL-8000 Series

PEL-8000 Series
Get Latest Price

Electronic Load PEL-8000

● CC, CV , CR, CP , short circuit dynamic and other working modes;
● Accuracy of 0.1%;
● Support extermal trigger input, output;
● Over voltage, overcurrent, overpower, overheat, polarity reverse protection;
● Automatic test function setting, more conve-nient operation;
● High brightness vacuum VFD screen and display V,A,P simultaneously;
● RS – 232 interface. Optional special communication line connecting computer.

Product Brochure

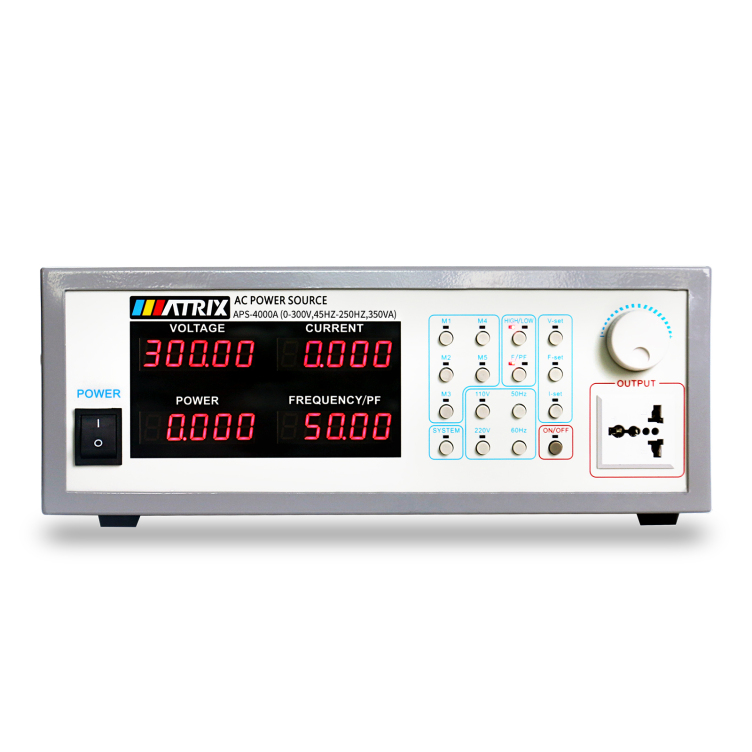

AC Power Source APS-4000 Series

APS-4000 Series
Get Latest Price

APS-4000 Series

  • Measuring function: voltage, current, frequency,power, power factor;
  • Strong overload capacity, 300% overload 2s;
  • Keyboard shortcuts: 110V, 220V, 50Hz, 60Hz shortcuts self-assembly;
  • The advanced direct digital frequency synthesizer (DDS) waveform is used to achieve high frequency stability, good continuity and accurate measurement;
  • With key lock M1, M2,M3,M4 and M5 five sets of memory, can store the commonly used voltage V and frequency F, easy to recall them by one key;
  • Four window five digit display, display voltage V, frequency F, current I, power P, power factor PF simulta neously, and more accurate;
  • nput frequency 45.00-250.00Hz;

Product Brochure

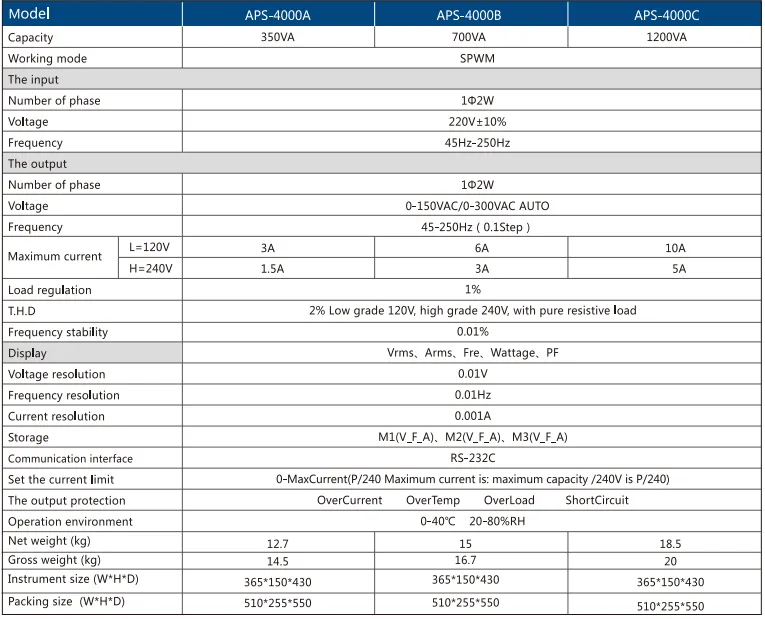

APS-4000 Series f

Scroll to Top
