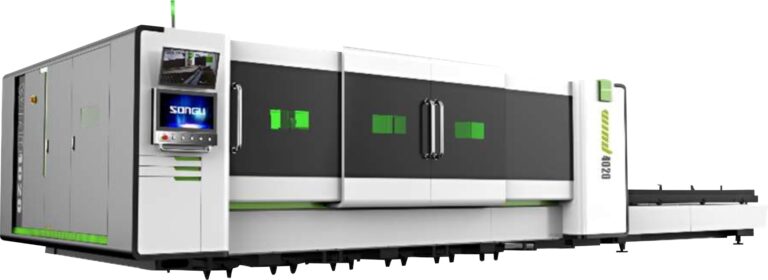

Wind4020 Series - Fiber Laser Cutting Machine
Wind4020 Series Fiber Laser Cutting Machine is a high-end cutting machine designed to deliver exceptional precision and efficiency in metal cutting applications. With its advanced fiber laser source and state-of-the-art cutting technology, this machine is capable of producing clean and accurate cuts on a wide range of materials, including stainless steel, aluminum, copper, brass, and more. Its high cutting speed and reliable performance make it an ideal choice for large-scale industrial manufacturing applications. The Wind4020 Series features a user-friendly interface and intelligent software that allows for easy customization and automation of cutting processes. Its robust construction and dependable operation make it a valuable asset to any production facility looking to improve productivity and quality in metal cutting.
Wind4020 Series - Features
High rigidity welded body has been treated with Vibrate Stress Relief and heat treatment to improve the body strength and little deformation
Equipped with PRECITEC new generation pro-cutter laser cutting head, Optimized cutting process, monitoring cutting conditions through“APP” use easily and friendly
Eagle eye (CCD) technology, ultra-fast positioning of the sheet metal edge, minimum cutting down time, In addition, it also can process punching parts and precut parts, due to the secondary positioning function
With an ergonomic design, equipped with an intelligent operation terminal, user-friendly and easy to learn.
Automatic energy saving mode: while stopping over 5 minutes, the machine automatically switches into “standby” mode, to reduce power consumption
Auto exchanging table with Hydraulic lifting system; ensure synchronous running, reliability, and stability.
Technical Parameters
| Model | Mach 3015/Mach 4020/Mach 6025/Mach 8025 |
|---|---|
| Laser Power | 1000~20000 |
| Working area(mm) | 4000*2000 |
| Overall dimension (mm) | 11000*3500*2200 |
| Reposition accuracy | ±0.03mm/m |
| Weight (kg) | 13600 |
| Max Speed (m/min) | 200 |
| Positioning accuracy | 0.05mm/m(VDI/DGQ3441) |
| Max positioning acceleration | 2.0G |
| Repeated positioning accuracy | 0.03mm(VDI/DGQ3441) |

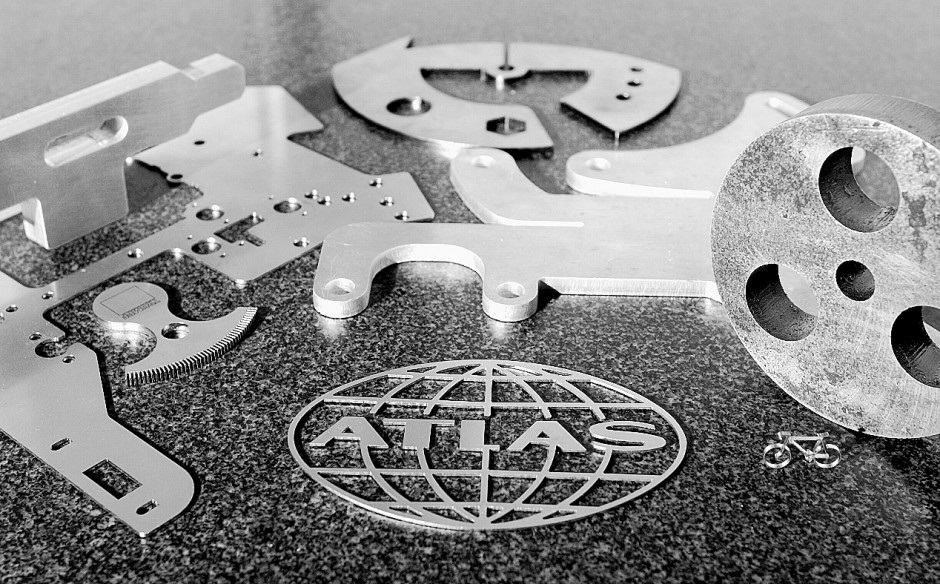

Samples
.
.
.
